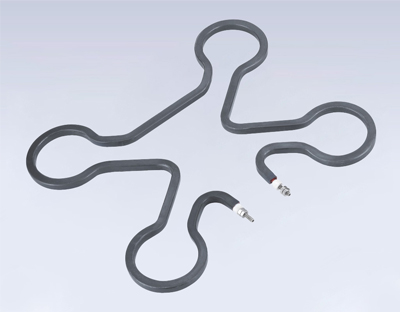

Heating elements can be resistive or inductive loads,depending on their working principle and circuit design.The following will provide a detailed explanation and comparison of resistive and inductive loads.
1.Resistive Load:
Resistive load refers to the resistor part of the heating element as its main load.The characteristic of resistive loads is that the current flowing through the components is proportional to the voltage,and the phase difference between the current and voltage is zero.Common resistive loads include electric heating wires,electric heating plates,heaters,etc.The heating principle of resistive loads is to generate heat through a resistor through an electric current,causing the component to warm up and heat its surrounding environment.
2.Inductive Load:
Inductive load refers to the coil part of the heating element as its main load.The characteristic of inductive loads is that there is a phase difference between the current and voltage flowing through the components,and the current lags behind the voltage.Common inductive loads include electric motors,solenoid valves,electromagnets,etc.The heating principle of inductive loads is to cause changes in the magnetic field in the coil through current,resulting in eddy currents in the magnetic induction coil,heating the component and heating the surrounding environment.
Comparison between the two:
-Power control:For resistive loads,the heating power can be controlled by changing the resistance value,making the heating intensity adjustable.For inductive loads,due to the phase difference between their current and voltage,more complex circuit control methods(such as phase control)usually need to be used to adjust the heating power.
-Energy efficiency:Resistive loads have a higher efficiency in converting electrical energy into thermal energy,while inductive loads have a lower efficiency in converting electrical energy into magnetic and thermal energy.
-Response time:Due to the magnetic field stored in the coil in the inductive load,the control of the heating element has a certain inertia,resulting in a longer response time.The resistive load responds faster.
-Circuit design:Inductive loads require more consideration for the stability and protection of the circuit,such as suitable relays or protective circuits,to prevent electromagnetic impacts caused by sudden changes in current.To prevent electromagnetic impacts caused by sudden changes in current.
Suitable load types need to be selected based on specific application requirements and the characteristics of heating elements.Resistive loads are suitable for general applications
